Caravan Flag Hinge UPVC Door Ellbee Suitable For ABI And Others White

£10.83£12.99 Excl. VATIncl. VAT

65 in stock

Description

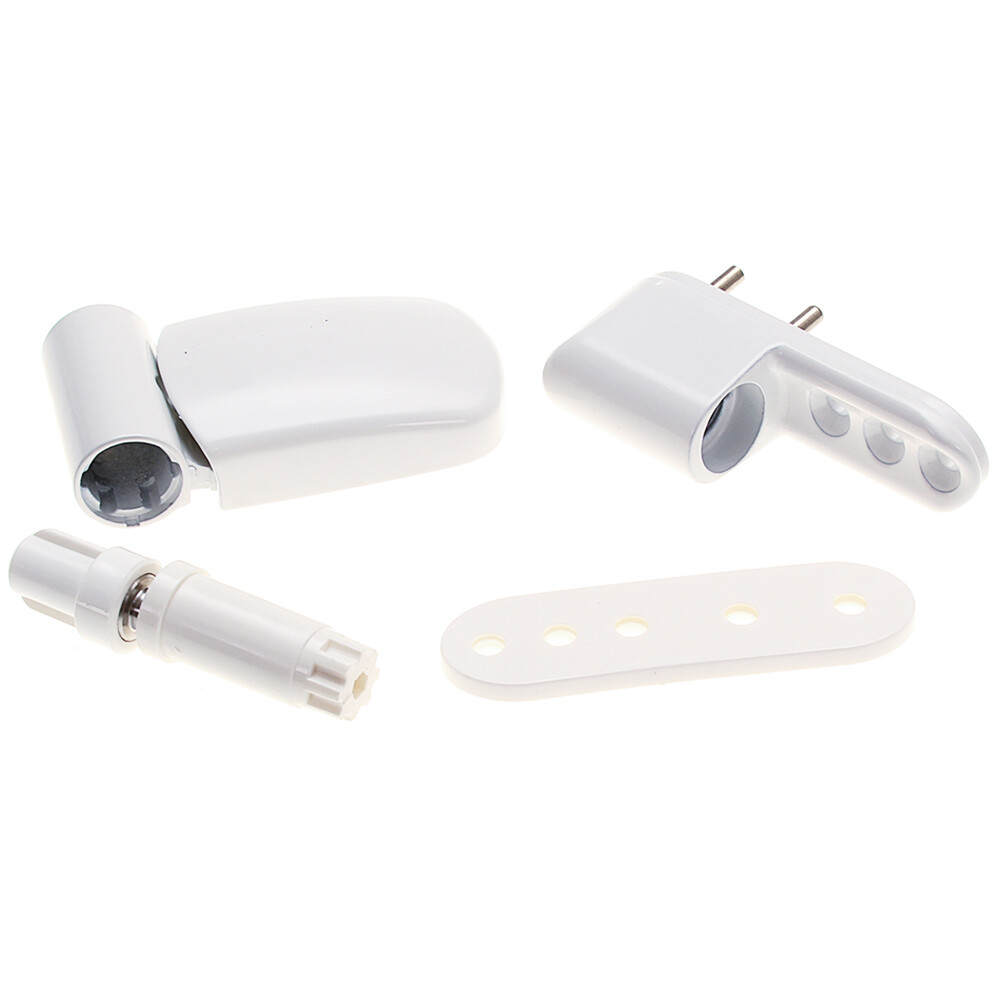

Ellbee adjustable ‘flag’ hinges for UPVC doors, White.

How to fit –

Step 1 –Drill sizes; Pins 4.0mm x 4 , Screws 3.0mm x 7

Step 2 –Frame housing fixing; Introduce packing to suit rebate thickness. Reinforced profile, 4.8 x 25mm CSK self drill. Unreinforced profile, 4.8 x 25mm CSK spoon type

Step 3 –Vertical adjustment

Step 4 –Leaf housing location & eccentric sleeve adjustment

Step 5 –Leaf housing fixing & horizontal adjustment

Step 6 –Fitting security screw to cap, M4 x 13L philips screw

Step 7 –Cap fixing

Adjustment –Allan keys (not supplied) 6.0 A/F bottom, 5.0 A/F top & horizontal

Recommended fixing –Screws (not supplied) 4.8 – 0.5mm (7 off) For outward opening doors tamper proof screws are recommended for fixing or leaf (4 off)
